Patents pending

Patents are pending for this new and innovative toilet flange with several patentable features.

More about the design

Easy to install. Precise by design. The only toilet flange having:

• a flat edge for precise parallel placement relative to a finished wall.
• a threaded opening which receives the fastening bolt and holds it firmly upright.
• additional brightly colored guides which extend upwardly to vertically lengthen the fastening bolt for installation alignment.
• a reusable cover which stores all elements needed to secure the toilet to the floor.
• a reusable cover that blocks debris from entering the riser pipe and also allows for visual inspection of the drain pipe to pass rough-in inspection.

What Plumbers Say:

• "Everything in one assembly."
• "This makes it so much easier."
• "They put a lot of thought into this product!"
• "What a great time saver!"

The Best Toilet Flange

See the videos, four parts, taking you through the installation of the flange:

Reasons why it's the best:

No more guessing about placement, this flange makes it easy for the installer to find the exact location for the toilet. The flat edge clearly shows the proper rotational position of the flange since it will be parallel to the back of the toilet tank. The reusable cover has clear markings showing the centerline location for proper setback of the flange from the finished wall. The cover further includes raised tabs onto which a measuring tape can be secured.

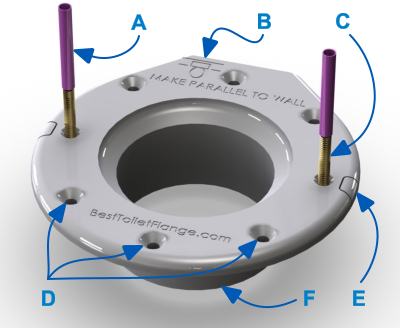

Stable bolts with disposable extendable sleeves

1. A. Each bolt having a brightly colored disposable sleeve which extends upwardly along the toilet fastener bolt for ease in aligning the toilet base opening with the toilet fastener bolt high above the floor.
2. B. Toilet perfectly positioned by having flat edge parallel to finished wall surface.
3. C. Stable erect bolts quickly threaded to clear stopping point. No more unstable or improperly rotated fastening bolts and no more plastic push-on bolt stabilizer rings.
4. D. Fastening locations spaced further radially from central riser opening for greater stability.
5. E. Break away openings for ease of future maintenance.
6. F. Fits standard 3-inch and 4-inch PVC pipe.

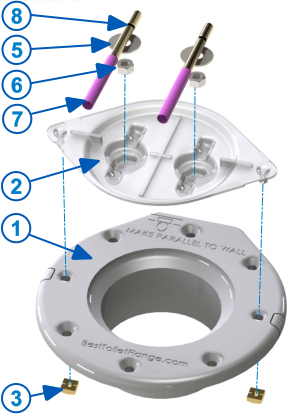

Reusable cover with fastener storage

1. A. Reusable cover that can be removed and reattached multiple times. Blocks debris from entering the riser pipe opening.
2. B. For purposes of rough-in inspection the cover is readily removed and replaced multiple times as water is added to the drain system.
3. C. Elevated tabs act as backstops for a straight edge to verify parallel position to wall and further as hooking locations for a measuring tape.
4. D. Recessed pry locations to assist in releasing the cover from the flange.
5. E. Storage location for nut, washer, fastening bolt and extendable sleeve, all that is needed to secure the toilet to the floor. Noting that the extendable sleeves protect the bolt threads during storage.

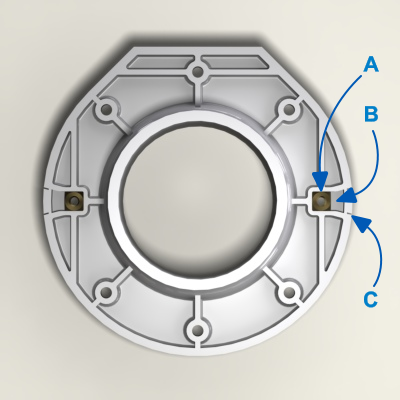

Maintenance slot and anchoring square nut

1. A. Anchoring square nut provides much greater surface area contact with underside of flange allowing for greater tensile force along toilet fastening bolt and thus greater holding force of toilet base to the floor.
2. B. Maintenace slot provided for future exchange of the anchoring square nut if desired.
3. C. Frangible element blocks debris from entering the maintenance slot during the construction phase but is readibly removable to open the maintenance slot.

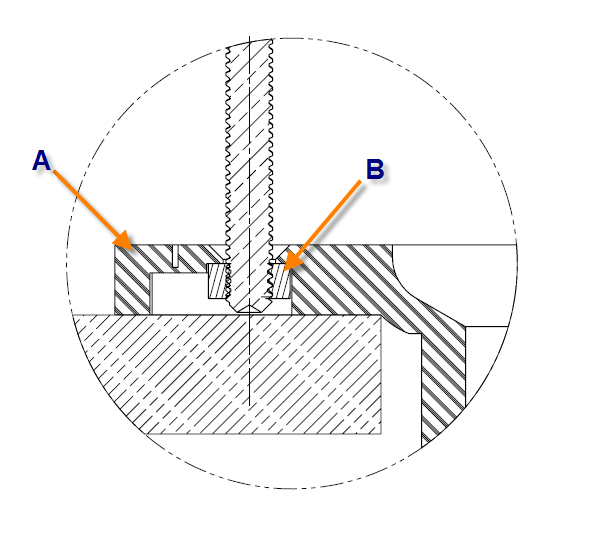

Maintenance slot side view

1. A. Frangible element readibly removable at a later date.
2. B. Anchoring square nut is elevated off the floor and acts against the underside of the flange to hold the toilet fastening nut firmly erect.
